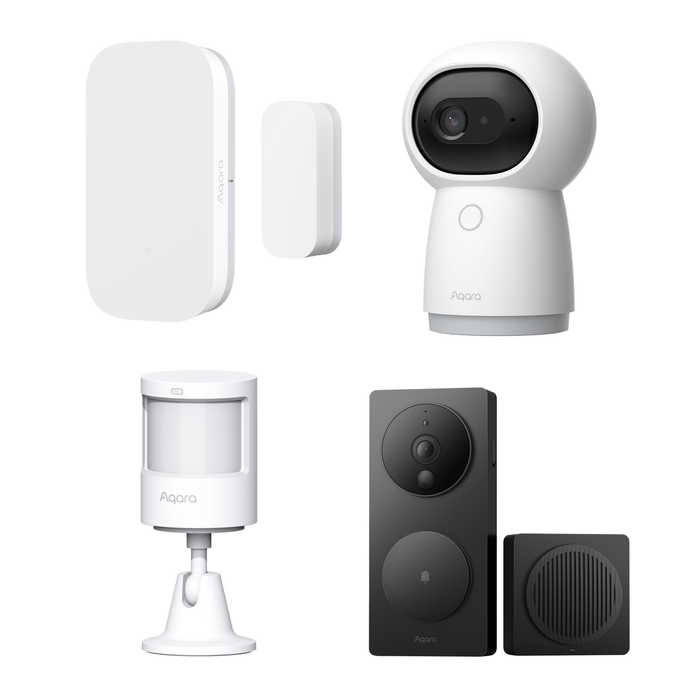

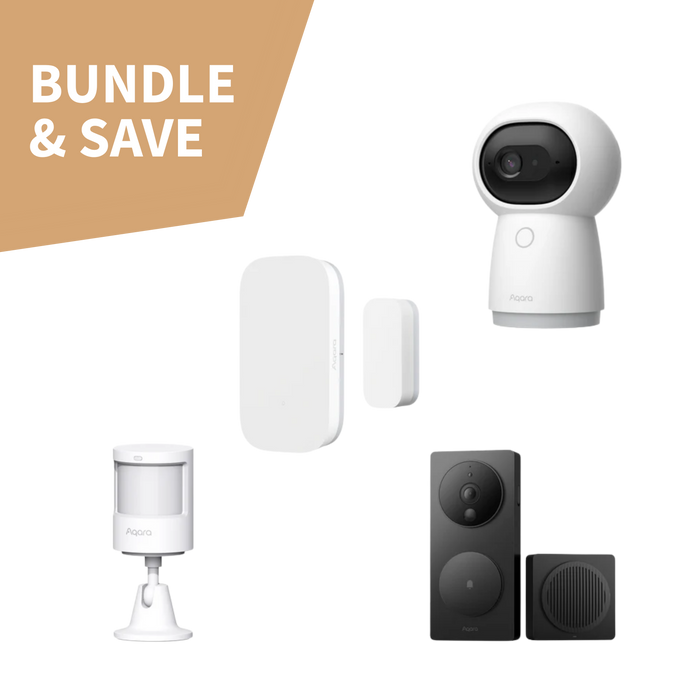

Aqara Smart Doorbell Security Bundle
What includes in this bundle:
Aqara Smart Doorbell G4 * 1
Aqara Camera Hub G3 * 1
Aqara Door and Window Sensor T1 * 1
Aqara Motion Sensor P1 * 1
Aqara Smart Video Doorbell G4
Aqara G4 is a unique video doorbell that can be wired or battery- powered. It is also the first battery-powered option to work with Apple’s HomeKit Secure Video and supports streaming to Google and Alexa smart displays, featuring local AI used for facial recognition alerts, automations, and much more.
Specifications:
Doorbell Main Module:
- Model: SVD-C03/4
- Video Resolution: 1080p
- Viewing Angle: 162° (diagonal)
- PIR Detection Angle: Horizontal 120°, vertical 80°
- Wireless Protocols: Wi-Fi IEEE 802.11 b/g/n 2.4 GHz
- Battery: 6 * LR6 AA alkaline battery (Replaceable)
- Wired Input: 12V-24V AC 0.2A 50/60Hz 8V-24V DC 0.5A
- Operating Temperature: -18°C ~ 50°C (-0.4°F ~ 122°F)
- Operating Humidity: 0 ~ 95% RH, no condensation
Chime Repeater:
- Loudspeaker Power: 2 W
- Wireless Protocols: Wi-Fi IEEE 802.11 b/g/n 2.4 GHz + WPA3
- Ports: USB-C, can use and recommended to use 5V USB DC UPS
- Input Power: 5 V⎓1 A
- Total Power Consumption: 5 W
- Local Storage: Support up to 512 GB microSD card local storage
- Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
- Operating Humidity: 0 ~ 95% RH, no condensation
Video:
- Codec: H.264
- Frame rate: 1080p@20fps/720p@20fps/360p@20fps (Adjustable)
Audio:
- Audio: AAC coding, bidirectional voice
Overall Product:
- Color: Black
- Dimensions (Main module): 141.5×65×30.4mm
- Doorbell net weight: 163g (no battery)
- Repeater size: 65.2×65×28.4mm
- Repeater net weight: 68g
- Packing box size: 148×96×73mm
- Gross weight: 550g
- Installation: The outdoor doorbell can be wall mounted, and the indoor unit can be wall mounted or placed on flat ground
Aqara Camera Hub G3
The Camera Hub G3 is a HomeKit Secure Video camera with facial and gesture recognition that also includes our most powerful Zigbee 3.0 smart home hub that can control existing IR-enabled devices.
Specifications:
Product Name: Camera Hub G3
Color: White
Model: CH-H03
Wireless Protocols: Zigbee 3.0 IEEE 802.15.4, Wi-Fi IEEE 802.11 b/g/n/a/ac 2.4/5 GHz
Dimensions: 123.4×85.1×67.8 mm (4.86×3.35×2.67 in.)
Operating Temperature: -10°C ~ 40°C (14°F ~ 104°F)
Operating Humidity: 0 ~ 95% RH, no condensation
Aqara Door and Window Sensor T1
The Aqara Door and Window Sensor T1 detects the open and close state of doors or windows based on the distance between the sensor unit and the magnet. It consumes minimal energy and requires no tools—simply stick it in your desired location for various use cases.
Specifications:
Model: DW-S03D
Battery: CR1632
Wireless Protocol: Zigbee 3.0
Dimensions: 41 × 22 × 11 mm
Maximum Detection Distance: 22 mm
Operating Temperature: -10 °C ~ 45 °C
Operating Humidity: 0 - 95%RH, non-condensing
Supports: Aqara Home, Apple HomeKit
Aqara Motion Sensor P1
Motion Sensor P1 detects body motion and the state of ambient light. If there are any people moving or any change in the ambient light state in the areas under detection, the motion sensor will send notice to the Aqara Home app through the connected Aqara Zigbee 3.0 Hub or link to other devices.
Specifications:
Model: MS-S02
Battery: CR2450
Wireless Protocols: Zigbee 3.0
Dimensions: 33.1×33.1×41.6 mm
Operating Temperature: -10°C ~ 55°C (14°F ~ 131°F )
Operating Humidity: 0 ~ 95%RH, no condensation
Zigbee Operation Frequency: 2405-2480 MHz
Zigbee Maximum Output Power ≤ 13 dBm
